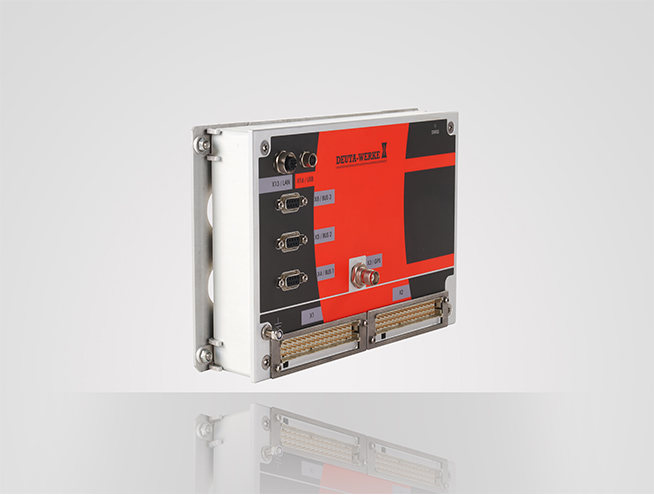

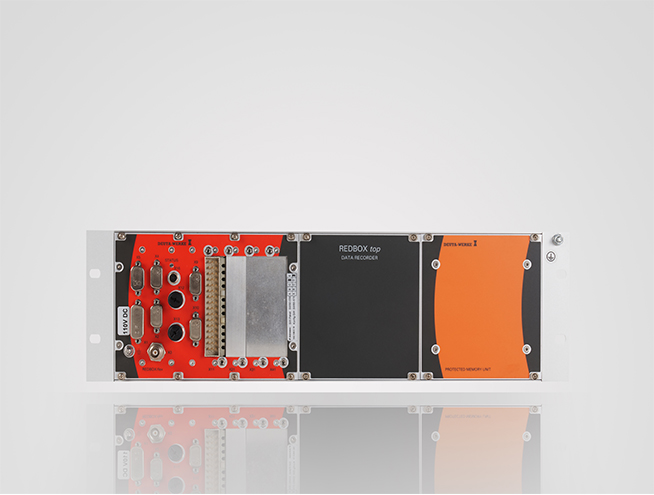

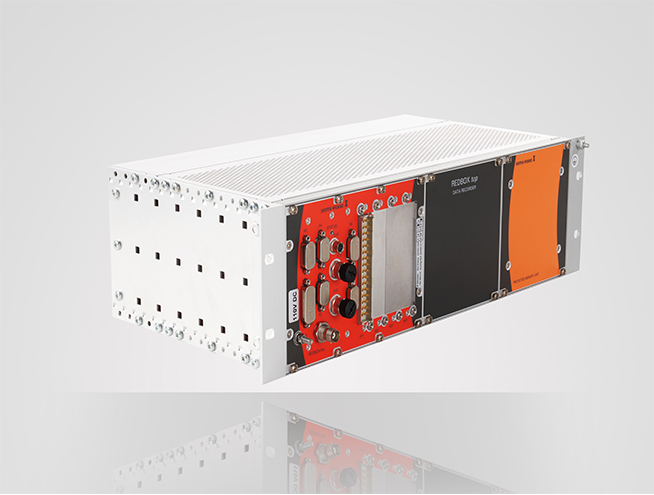

DEUTA REDBOX® Multi-Functional Recorders are suitable for every vehicle environment. The sophisticated REDBOX concept provides travel data recording and innovative possibilities for service and evaluation.
The compact dimensions of the extremely robust train data recorders are impressive and allow for easy worldwide data access through the Web-Interface system. In this way, you always have recorder status, data storage and communication status under your control.
If you want to know more information, please click here.

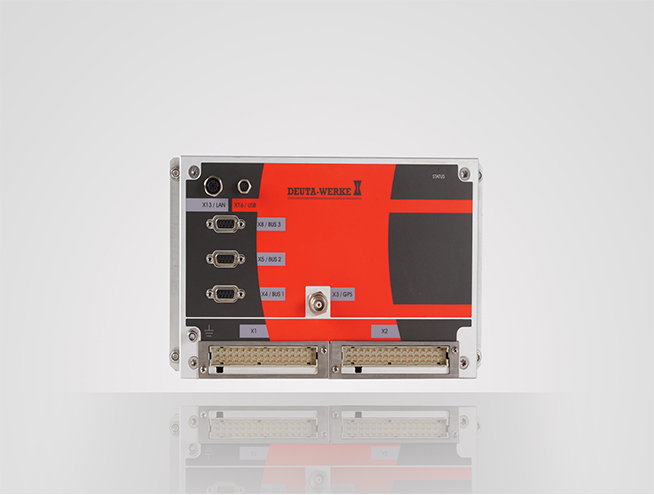

Example configuration: DEUTA REDBOXflex
Operating voltage: 24 VDC or 110 VDC
Power consumption: max. 15 W
Temperature range: -25°C to +70°C (operation)
-40 °C to +85 °C (storage)
2 frequency inputs: Squarewave, fmax 10,0 kHz
2 analogue inputs: ± 0 to 10 V or 4 to 20mA
4 digital inputs: High level +12 to +154 V DC
Recording raster: Triggered by distance, time or event
Storage medium: int. CompactFlash 2 GB
2 analogue outputs: 0 to 10 V or 4 to 20mA
2 transistor outputs: Open Collector
1 relays: Changeover contact (Can be extended with additional I/O cards)
Vehicle buses: MVB, Ethernet, CAN & Profibus optionally
Serial interfaces: RS 232, RS 422/485 optionally
Service PC connection: 1 Ethernet, 1 USB
Tracking: GPS
Dimensions:
Width 121.92 mm (24 TE) 19"
Height 128.4 mm (2 HE) 19"
Depth 180 mm
Weight: approx. 1.2 kg
Protection category: IP 20
Connection: 1 F48 plugs, DIN 41612 for IP 20, 2 M12 d round plug, M8 round plug (Ethernet), 6 D-Sub plug 9-pole (USB)
solution
Solution
DF16 axle-mounted sensors are widely used in the brake system or the signal system of railway trains. DF16 series speed sensors have been applied to more than 100 urban rail lines in China. Reference (Parts): Beijing Line 5, Shanghai Line 2, Guangzhou Line 7, Hangzhou Line 1, Changsha line 1, Chengdu line 1, Zhengzhou line 1, Guiyang line 1, Urumqi Line 1, etc. In the field of locomotive, this product has a large application, including Shaoshan locomotive, Hexie locomotive, Dongfeng locomotive and other types of locomotives.
solution
Solution
The highly flexible configuration and stable application of this series of indicators have been widely recognized by the owners. Over the years, it has been widely used in major railway locomotives. The total sales of it have exceeded 100,000 pcs.
EGS3/8, EGZ3/8, ENG13/8, EZG13/8 single and double needle indicator are mainly used for domestic railway locomotives, such as: SS4 / SS4B / SS8 / SS9 / HXD1B / HXD1C / Shenhua 8 axis / Shenhua 12 axis / DF11 / DF8B / DF12 domestic locomotive as well as many export locomotive.
Eng10/8b, EN (Z) G10/8H are mainly used for various export locomotives, such as: SFJ93 Namibia /SFJ94 Angola SFJ94 / SFD19D1 / Sri Lanka D20, D21, D22 and other locomotive.
Eng8/9, ENG8/9A, EGS5/8 speedometer, voltmeter and net pressure meter are used in domestic and foreign railway locomotives, such as Ningbo Metro Line 2, Singapore metro engineering vehicle, Shenzhen Metro, Guangzhou Metro, Argentina bullet train, Qingdao metro Line 3, etc.
solution
Solution
HS series speed sensors are widely used in rail train traction systems and braking systems, providing a large number of products for the first and subsequent large speed increase of China railway. In recent ten years, with the development of high-speed railways, HS series Hall speed sensors have been widely used in the ATP signal system of high-speed EMU, with CTCS-300T, CTCS-300H, CTCS-300S and other mainstream ATP systems selected, and the annual sales volume exceeds 3000 sets. It has characteristics such as stable operation of equipment, good customer response and high market share.
